Re: (ET) Motor rebuild, E20's

[Rod Hower <rodhower ameritech net>]

 I always enjoy reading your rebuild stories of the Elec-traks.  I went

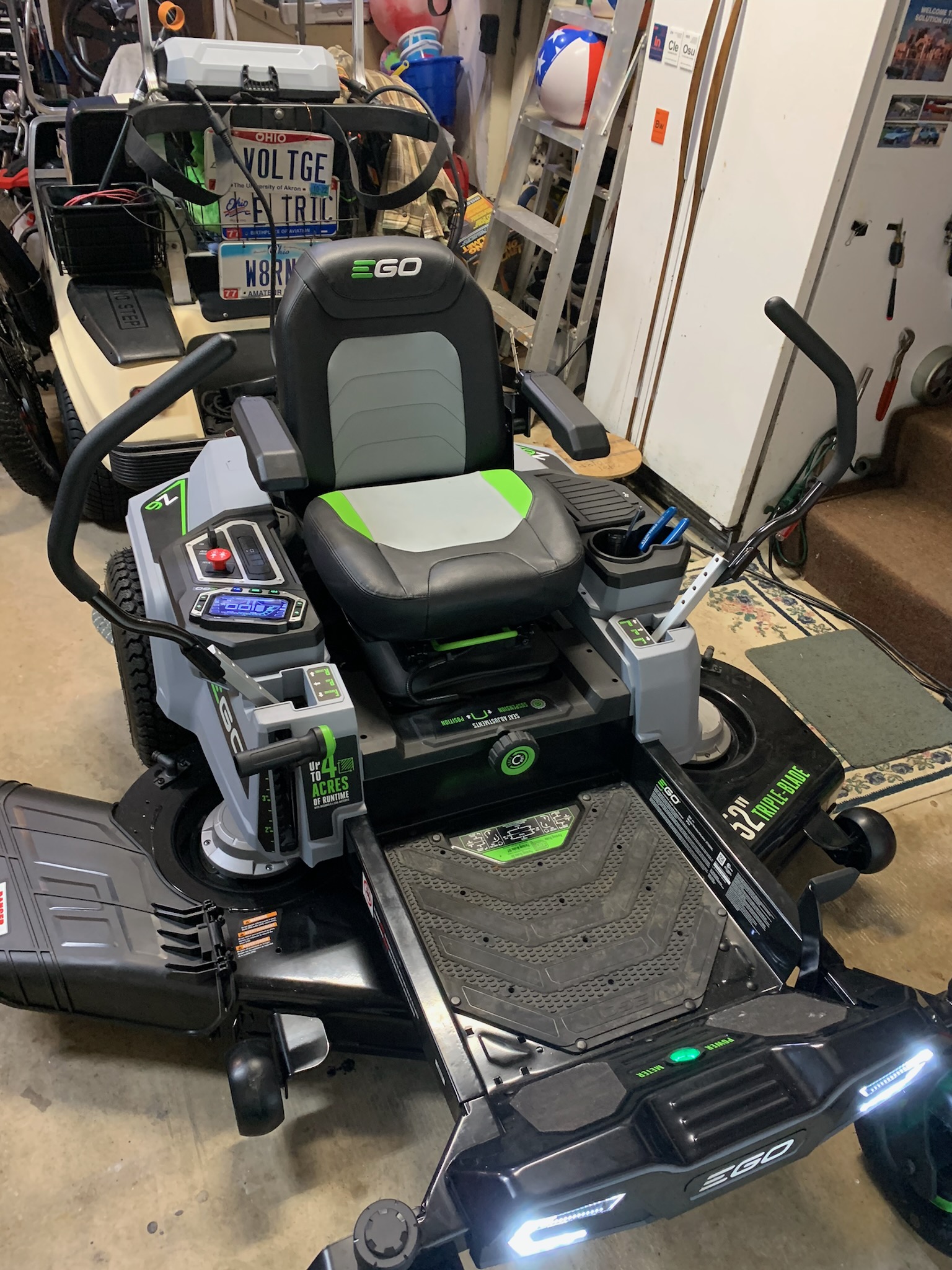

over to the future and bought an EGO  ZT5207L.  I got a pretty good deal
with all of the discounts, but it was still kind of pricy at $4500 for
everything including the bagger and tax.  Would have been closer to $7k
without the clearance price and military discount (I didn't serve, but my
dad was in the Navy and my son is on year 9 going for 20).  Not sure if
the picture will attach.
    On Wednesday, May 28, 2025 at 06:21:55 PM EDT, Christopher Zach via
Elec-trak <elec-trak cosmos phy tufts edu> wrote:

 In addition to the E15 I also got a pair of E20 motors for my bigger
Elec-Trak. My current motor runs fine but has a ground fault in the
armature compensation windings, which is really terrible. It's fine for
day to day use, but the frame of the tractor does have a ground through
the winding so it's a disaster if anything else ever develops a ground
fault (like a deck motor).

One of the motors was probably rebuilt in the past as it is smooth and
runs fine on 12 volts. The other is more... rustic so I decided to open
it up, check it out, and pull the bearings.

Getting the pulley off was a job, a previous person had probably used a
2 jaw puller and broke one of the pulley sides/sheaves. I put a 3 jaw
puller on the bottom slot, then cranked it tight and left it for a day
under tension with some penetrating oil in the set screw hole. Came back
the next day, used a pair of large flat bladed screwdrivers to "rock"
the pulley against the motor housing then kept upping the pressure till
it moved a bit with the screwdrivers. Then slowly cranked it off.

Getting the 4 screws out the back was a challenge, one broke off and the
other three responded to the loose/tight method of screw removal. Pulled
off the back, disconnected the wire from the field winding to the
brushes, and removed the armature. It was the usual level of dirty and
such so I cleaned it up, then removed the front bearing and then the
rear with the bearing puller. Pressed new ones on (use a deep socket
that touches the inner race only and tap on gently after cleaning the
shafts up with your grinder/wire brush) then cleaned up the shaft and
commutator bars.

Now it's just a matter of cleaning out the dust in the end caps, and
putting it back together. Will need a new screw, maybe I'll use a
stainless one. Either way everything goes back with a thin coating of
anti-seize so the next guy 50 years from now will have an easy time of
it. If you're reading this now, I hope you have flying cars and such by
that time, hello from the past!

Once it's together I'll find time during the summer to drop the existing
motor and swap one of these in. Then I might put the other motor on the
E15 junker; I can already see that the E20 has a lot more power than an
E15 in using this blade to shove stuff around....
